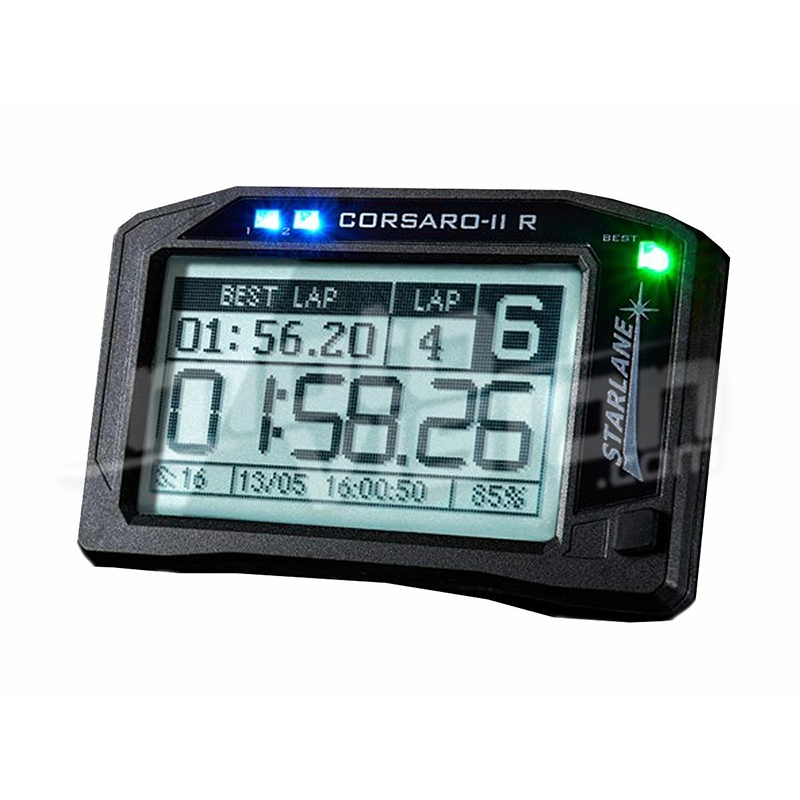

Starlane Corsaro R

CORSARO révolutionne le concept du chronomètre et du système d'acquisition de données
et définit une nouvelle étape technologique sur le marché mondial.

CORSARO is surely, by full right, the most innovative product in the field for the philosophy by virtue of which it has been conceived and designed, as well as for its technology enclosed in a compact design executed with the greatest care.

CORSARO revolutionizes the concept of lap timer and data acquisition system and defines a new technological step in the world market.


Allows the immediate use thanks to the built-in library of hundreds of tracks with intermediates, between which the device automatically recognizes the current one.

Featuring S.E.P.L.A. (Starlane Enhanced Precision Laptiming Algorithm) function: a lap timing algorithm allowing very high lap timing precision

CORSARO project has been cared to even the smallest detail, such as the seal, which not only performs the function of water protection but is also elastic part the SDGS (Starlane Gasket Dampening System), an anti-vibration system integrated in the body, allowing you protect the internal electronics mounted on the front, which thus remains completely suspended and, in addition to the elastic fixing of the instrument on the vehicle, undergoes in this way a strong damping of the vibrational stresses that might otherwise damage heavily any electronic device.

SDGs is an exclusive by Starlane, result of experience gained by addressing the various issues that came up from the most extreme product uses and whose installation is a focal point for the durability and reliability over time.

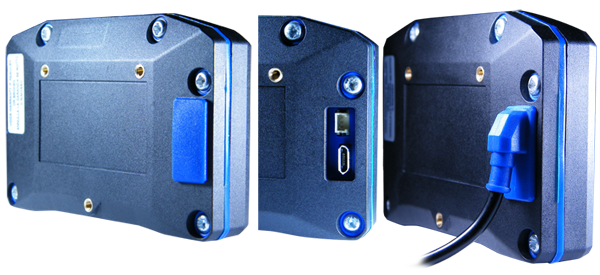

As every detail, also the power cord output of CORSARO has been designed to allow maximum installation compactness and flexibility. The special cable grip ensures watertight, maintaining total flexibility, and allows you to direct the cable in every direction following the various installation requirements.

This solution leads to an actually zero increase on the device thickness and is not comparable to the bulky rigid connectors usually used which stick out several centimeters from the back of the instrument creating great constraint in the installation.

The Micro USB socket allows you to easily recharge the internal battery in cases where the instrument is not powered by the vehicle battery.


WID-A MINIATURIZED WIRELESS MODULE (67MM X 45MM X 16MM) WID-D (CODE WD)
WITH INTERNAL BATTERY AND SOLAR PANEL TO HOLD THE CHARGE.

Available Inputs:

Water Temperature
Thermocouple K for exhaust temperature
Engine RPM

-Wheel Speed
General Analog 0-5V available for TPS (Throttle Position Sensor)

Power Supply:
Internal rechargeable battery
Secondary supply 5-15V inlet
RPM du moteur

Engine speed can be detected either inductively from the vehicle using the cable supplied with the module.
Other sensors are optional and available in Starlane catalog.
For some inputs, such as eg. RPM, TPS and Speed Wheel, you can connect to standard signals already available on the main bike models.

WID-C MINIATURIZED WIRELESS MODULE (60MM X 44MM X 21MM) WID-C (CODE WC3A)
Available Inputs:

3 Generic Analog for the connection of sensors with 0-5V analog output as, for example: linear potentiometric suspension sensors with codes: SSLIN075M8, SSLIN150M8, SSLIN075PROM8, SSLIN150PROM8 or brake pressure sensor with code SSPBK60M8.
CAN BUS Line for compatible vehicles and for Starlane RID Modules.
Power Supply: 12V from vehicle.

RID-LAMBDA (CODE RID2RLT)
It comes with BOSCH LSU4 Wide Band Lambda sensor and, by means of the supplied transmitter, transmits to CORSARO Air/Fuel ratio, Engine RPM and Throttle Position values to achieve the best mapping for your engine management system.

IF YOU DON'T WANT TO USE YOUR COMPUTER OR PRESS BUTTONS ON THE TRACK, THE SAFD-2 FEATURE (Starlane Automatic Finish line Detection), WILL SPLIT AUTOMATICALLY THE TRACK AFTER THE FIRST 2 LAPS RUN, ALLOWING YOU TO SEE YOUR LAP TIMES AND INTERMEDIATES FROM THE VERY FIRST SESSION WITHOUT ANY ACTION ON THE LAP TIMER.

CORSARO PRO ALLOWS THE DATA DOWNLOAD VIA BLUETOOTH.
MAAT software allows to analyse the data downloaded. Apps for Android and iOS Will be released son.

Another feature making unique CORSARO PRO is the possibility to be connected to the optional wireless WID (Wireless Input Device) expansion modules which allow the acquisition from external sensors (eg. throttle, suspensions, etc.) or from the CAN BUS line of the vehicle, creating in this way a professional, complete and unique in the world, data acquisition system being totally expandable in a wireless way.

SPECIFICATIONS OF CORSARO K
