Boitier de connection PLUG N PLAY Motogagdet Harley Davidson Twin CAM
Reference 4003113
149,46 € incl. VAT
instead of 159,00 € incl. VAT
Description
Compatible with
Technical sheet
Reviews 0

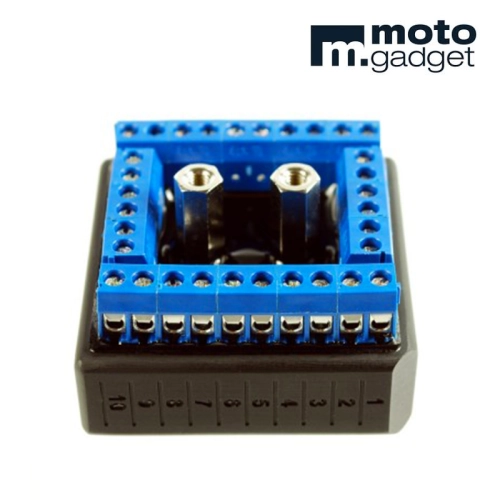

The mo.can J1850 is a digital adapter for the hassle-free connection of our instruments PLUS indicator lights to the stock wiring harness. No soldering or crimping necessary, so the warranty remains intact.

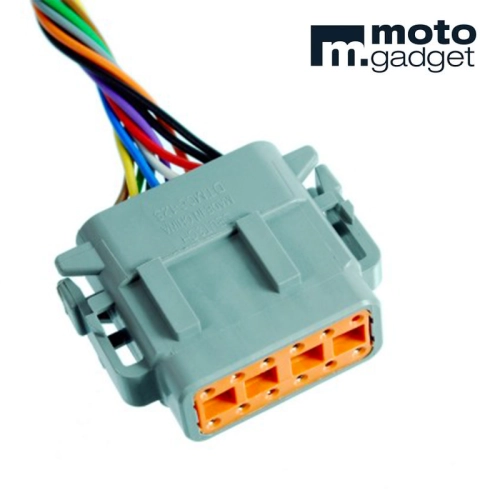

You will receive the specific plug connectors required for the connection to the stock wiring harness of the H-D Modell you selected. Just connect the wires of the instrument, indicator lights and of the included plug connector with the screw joints of the mo.can J1850. Then plug this side of the plug connector into the specific connector of your bike, and you are ready to go. Almost plug ’n ride, it doesn’t get any easier.
The mo.can J1850 fits all H-D with TwinCam engine from 2004 on that have DEUTSCH plug connectors and the dashboard on the tank (TwinCam). It also fits all H-D Sportster models from 2004 on that have DEUTSCH (XL DEUTSCH) or MOLEX (XL MOLEX) plug connectors. Furthermore it can be used for all H-D Vrod motorcycles that have DEUTSCH (VRSC) plug connectors.
Important! not compatible with any models that use H-D LAN, e.g. Softtail from 2011 and later, Dynas 2012 and later, XL 2014 and later, all Rocker and Dyna-models, that have instruments on the fork bridge.
You will receive the specific plug connectors required for the connection to the stock wiring harness of the H-D Modell you selected. Just connect the wires of the instrument, indicator lights and of the included plug connector with the screw joints of the mo.can J1850. Then plug this side of the plug connector into the specific connector of your bike, and you are ready to go. Almost plug ’n ride, it doesn’t get any easier.
The mo.can J1850 fits all H-D with TwinCam engine from 2004 on that have DEUTSCH plug connectors and the dashboard on the tank (TwinCam). It also fits all H-D Sportster models from 2004 on that have DEUTSCH (XL DEUTSCH) or MOLEX (XL MOLEX) plug connectors. Furthermore it can be used for all H-D Vrod motorcycles that have DEUTSCH (VRSC) plug connectors.
Important! not compatible with any models that use H-D LAN, e.g. Softtail from 2011 and later, Dynas 2012 and later, XL 2014 and later, all Rocker and Dyna-models, that have instruments on the fork bridge.
Features
- Speed
- RPM
- Controls indicator lamp for MIL (check engine warning)
- Controls indicator lamp for turn signalsr
- Controls indicator lamp for high beam
- Controls indicator lamp for oil pressure
- Controls indicator lamp for fuel reserve
- Controls indicator lamp for alarm
Not available:
- Indicator lamp for ABS (if existing)
- Indicator lamp for 6. gear (if existing)
- Indicator lamp for battery charge indicator (if existing)
- Fuel gauge (if existing)
Parts delivered
- mo.can J1850 adapter with specific plug connector
- 32 connection terminals
- 2 x M3 mounting screws
- 32 cable end sleeves
- plastic sheet for fixing and anchoring the cables
- 2 cable ties
Specifications and features
Length, Height, Depth without plug connectors | 72 mm / 42 mm / 26,5 mm |
Weight including plug connectors and Cables | approx. 70 g |
Plug connectors | model specific, see pictures |
Fastening | with two mounting screws M3 |
This product is comptable with:
HARLEY DAVIDSON | Cross Bones FLSTSB (Moteur TC96) | 2007 => 2011 |
HARLEY DAVIDSON | Custom FXSTC (Moteur TC96) | 2007 => 2011 |
HARLEY DAVIDSON | Delux FLSTN (Moteur TC88) | 2000 => 2006 |
HARLEY DAVIDSON | Delux FLSTN (Moteur TC96) | 2007 => 2011 |
HARLEY DAVIDSON | Fat BoB FXDF (Moteur TC96) | 2008 => 2012 |
HARLEY DAVIDSON | Fat Boy FLSTF (Moteur TC88) | 2000 => 2006 |
HARLEY DAVIDSON | Fat Boy FLSTF (Moteur TC96) | 2007 => 2011 |
HARLEY DAVIDSON | Fat Boy Special FLSTFB (Moteur TC96) | 2007 => 2011 |
HARLEY DAVIDSON | Heritage Classic FLSTC (Moteur TC96) | 2000 => 2006 |
HARLEY DAVIDSON | Heritage Classic FLSTC (Moteur TC96) | 2007 => 2011 |
HARLEY DAVIDSON | Heritage FLST (Moteur TC88) | 2000 => 2006 |
HARLEY DAVIDSON | Heritage Springer FLSTS (Moteur TC88) | 2000 => 2006 |
HARLEY DAVIDSON | Low Ride FXDL (Moteur TC88) | 2000 => 2005 |
HARLEY DAVIDSON | Low Ride FXDL (Moteur TC88) | 2006 => 2006 |
HARLEY DAVIDSON | Low Ride FXDL (Moteur TC96) | 2007 => 2013 |
HARLEY DAVIDSON | Night Train FXSTB (Moteur TC88) | 2000 => 2006 |
HARLEY DAVIDSON | Night Train FXSTB (Moteur TC96) | 2007 => 2011 |
HARLEY DAVIDSON | Springer Classic FLSTSC (Moteur TC88) | 2000 => 2006 |
HARLEY DAVIDSON | Springer FLSTS(Moteur TC88) | 2000 => 2006 |
HARLEY DAVIDSON | Street BoB FXDB (Moteur TC96) | 2007 => 2013 |
HARLEY DAVIDSON | Street Bob FXDB (Moteur TC88) | 2006 => 2006 |
HARLEY DAVIDSON | Stringer Classic FLSTSC (Moteur TC96) | 2007 => 2011 |
HARLEY DAVIDSON | Super Glide Custom FXDC (Moteur TC96) | 2008 => 2013 |
HARLEY DAVIDSON | Super Glide FXD (Moteur TC88) | 2000 => 2005 |
HARLEY DAVIDSON | Super Glide FXDC (Moteur TC88) | 2006 => 2006 |
HARLEY DAVIDSON | Super Glide Sport FXDX (Moteur TC88) | 2000 => 2005 |
HARLEY DAVIDSON | Wide Glide FXDWG (Moteur TC88) | 2000 => 2005 |
HARLEY DAVIDSON | Wide Glide FXDWGF (Moteur TC96) | 2007 => 2012 |
- Download : J1850 Manuel
Reference | 4003113 |
Manufacturer | Motogadget |
